From architecture to layout, thermal analysis, and BOM sourcing. Designed according to IPC standards and ready for instant transition to VenopAI prototype fabrication.
Our engineering team delivers clean deliverables including KiCad/Altium archives, Gerbers, drill files, BOMs, and 3D STEP models.
Complete electrical schematic authoring from block diagrams or PRDs, including power budgets, signal flow, and safety isolation.

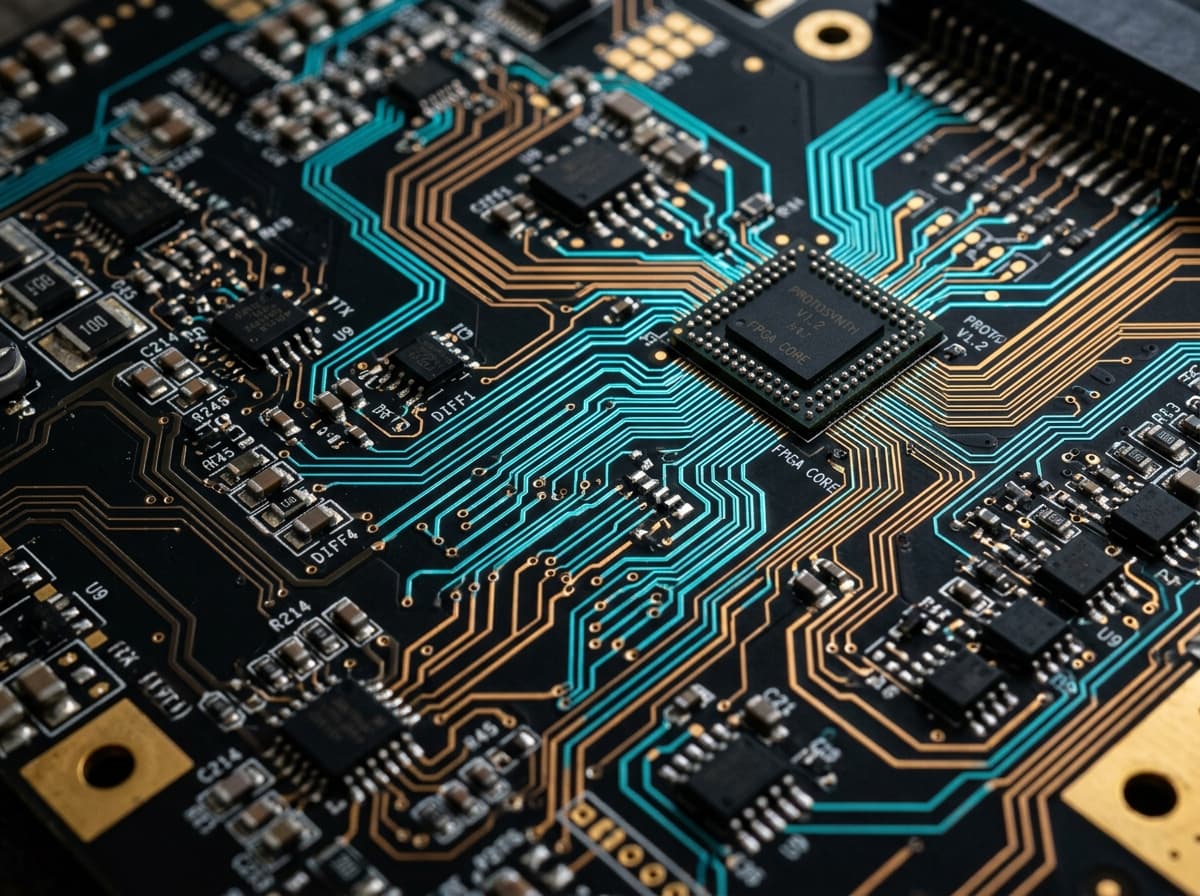

Multi-layer boards (2-16 layers) with impedance matching, length matching, DDR/PCIe routing, and differential pair optimization.
Active lifecycle verification, secondary supplier mapping, lead-time mitigation, and automated manufacturer part number (MPN) validation.
Thermal relief checks, DRC/DFM compliance against SMT fabrication limits, and return path continuous ground reference validation.
Completed design deliverables can be converted directly into a Phase 8 PCB Fabrication & SMT Assembly order with a single click. No manual file re-uploads or format conversion needed.
